BYD Battery-Box HVS+ 2,56kWh Battery Module

Product code : 78003-SN

BYD Battery-Box Premium HVS+ 2,56kWh Battery Module to compose 1 Battery-Box HVS stack from 2 to 5 HVS Battery Modules in series. Ability to scale by adding HVS+ modules later

You can contact us for more information via the button “add to Wishlist'

Step 1 - Choose a Compatible Battery

BYD Battery-Box HVS+ 2,56kWh Battery Module

Configure - Step 2 - Necessary Accesories

BYD Battery-Box BCU HVB/HVS+/HVM+

BYD Battery-Box HVS+ 2,56kWh Battery Module

Product description

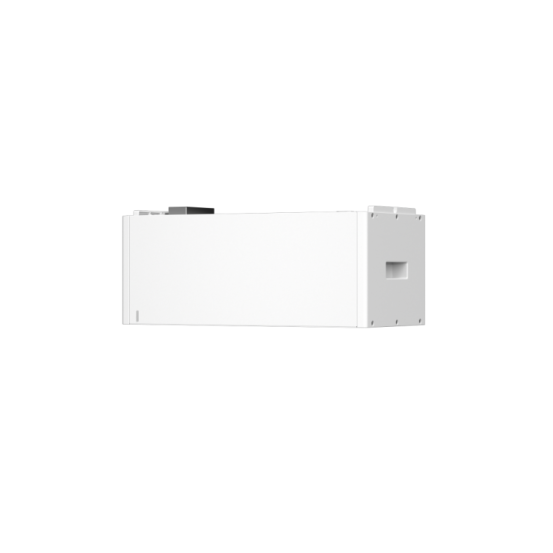

BYD Battery-Box HVS+ 2.56 kWh Battery Module

The BYD Battery-Box HVS+ 2.56 kWh is a premium battery module from the new HVS+ generation. Flexibly configure from 2 to 5 modules per tower and create a system from 5.12 to 12.8 kWh, perfectly suited for residential and light commercial applications. The module supports a max. output current of 25 A and a peak of 55 A for 15 seconds, ensuring your home or business keeps running even during power peaks.

The Battery-Box HVS+ residential energy storage system, compatible with several market-leading single and three-phase inverters, combines the benefits of high power, easy installation, worry-free expansion and smart configuration, making it suitable for various application scenarios such as self-consumption and backup power.

BYD Battery-Box HVS+ 2,56kWh Battery Module

Product specifications

Depth (mm)

282

Depth of discharge (usable capacity)

95%

Chemistry of the battery

LFP (Lithium Iron Phosphate)

Height (mm)

240

Storage (kWh)

2.56

Brand

BYD

Factory Warranty (Year)

Width (mm)

610
