FoxESS AVOCADO P100-5-H 5kW - 10.24kWh Solution
Product code : 79400-SN
11935The FoxESS Avocado P100-5-H is a powerful all-in-one 10kWh energy storage system with integrated 5kW inverter, LiFePO4 battery, IP66 protection, and lightning-fast backup for reliable home use.
You can contact us for more information via the button “add to Wishlist'
FoxESS AVOCADO P100-5-H 5kW - 10.24kWh Solution
Product description

FoxESS AVOCADO P100-5-H 5kW – 10.24kWh Solution

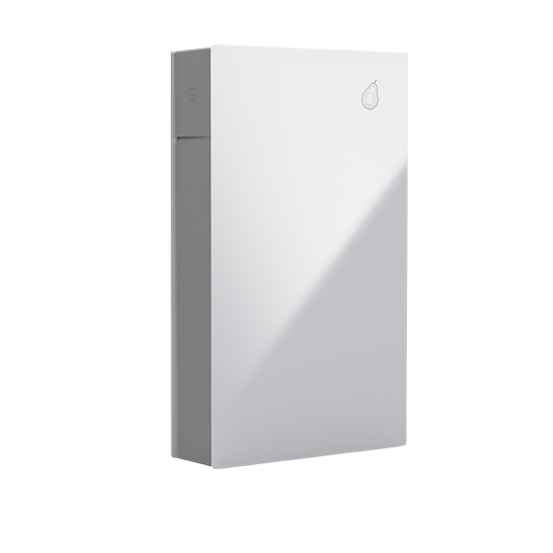

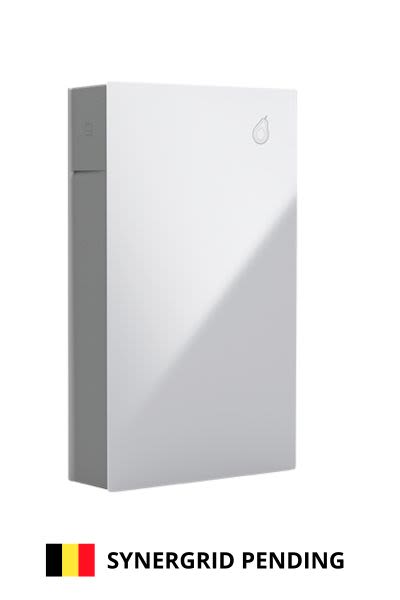

The Avocado P100-5H is an all-in-one energy storage solution. This compact unit integrates both a 5 kW inverter and a 10 kWh battery behind a white glass front panel. Thanks to the built-in MPPTs, the system can handle directly connected solar panels, but it also performs perfectly well without them.
With a 95% Depth of Discharge and 6,000 charge cycles, the battery guarantees a long service life and high usable capacity. FoxESS also highlights the fast switch-over time of just 4 milliseconds during power outages and the dual EPS function, ensuring that critical loads continue to operate reliably.
Other notable features:
✔
Wide operating temperature range (-20°C to +55°C)
✔
Parallel operation possible (up to 10 units on-grid, 3 units off-grid)
✔
User-friendly monitoring via FoxCloud V2.0, app, web interface and LCD
Compact and lightweight design compared to a Powerwall 3 (113 kg versus 124 kg)
In short, FoxESS presents the P100-5H as a powerful, reliable and intelligent storage solution suitable for virtually any scenario.
FoxESS AVOCADO P100-5-H 5kW - 10.24kWh Solution
Product specifications
Cycles
>6000
Max. AC power (W)
5500
Depth (mm)
197
European efficiency (%)
97.2
Height (mm)
1009
Depth of discharge (usable capacity)
95%
Storage (kWh)
10.24
Brand
FoxESS
Factory Warranty (Year)
10
Width (mm)
584
Reference
P100-5-H
Category
Storage
FoxESS AVOCADO P100-5-H 5kW - 10.24kWh Solution
Product documents
