FoxESS H1-5.0-E1-G2-WL

Product code : 79340-SN

FoxESS H1-5.0-E1 hybrid inverter with 5 kW of power, battery support and IP65 protection. Smart, quiet and ideal for residential use.

You can contact us for more information via the button “add to Wishlist'

Step 1 - Choose a Compatible Battery

FoxESS EP6 High Voltage Battery

FoxESS EQ4800-M Master High Voltage Battery

FoxESS EQ4800-S Slave High Voltage Battery

Configure - Step 2 - Optional Accesories

FoxESS DDSU666 1-Phase Smart Meter

FoxESS DTSU666 3-Phase Smart Meter

Configure - Step 3 - Choose a Warranty Extension

FoxESS EQ4800-M Master Extended Warranty +2Y

FoxESS EQ4800-S Slave Extended Warranty +2Y

FoxESS EQ4800-S Slave Extended Warranty +5Y

FoxESS H1-5.0-E1-G2-WL

Product description

FoxESS H1-5.0-E1-G2-WL

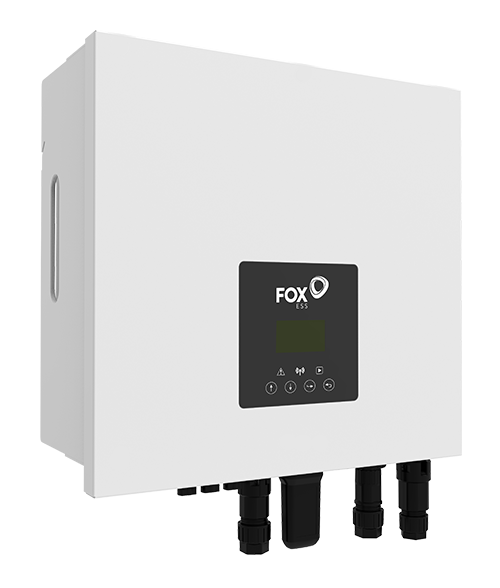

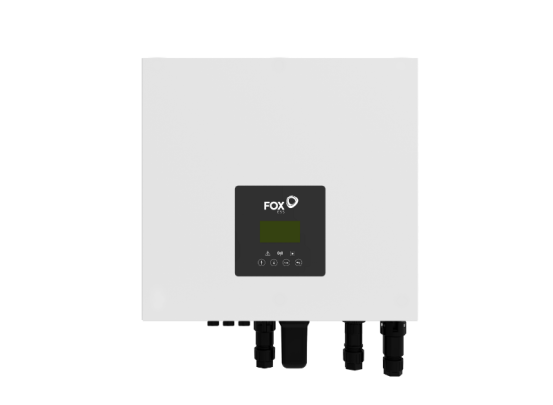

The FoxESS H1-5.0-E1-G2-WL is a compact single-phase hybrid inverter with 5 kW of power, perfectly suited for residential applications. It combines PV generation with high-voltage battery storage in one smart system. With features like EPS (emergency power supply), silent operation, and IP65 protection, this inverter is ready for any modern home installation.

✔ Supports high-voltage batteries (85–450 V)

✔ Max. PV input up to 6.5 kWp with dual MPPT

✔ Full connectivity: WiFi, RS485, USB, app & web portal

✔ IP65 housing – suitable for indoor and outdoor use

✔ Excellent efficiency: up to 98.5% (PV to AC)

FoxESS H1-5.0-E1-G2-WL

Product specifications

Max. AC power (W)

5000

Number of MPP trackers

European efficiency (%)

Brand

FoxESS

Factory Warranty (Year)

10* after registration on https://www.fox-ess.com/warranty-registration-2/#1603450715619-f0ac6247-a329

Reference

H1-5.0-E1-G2-WL
