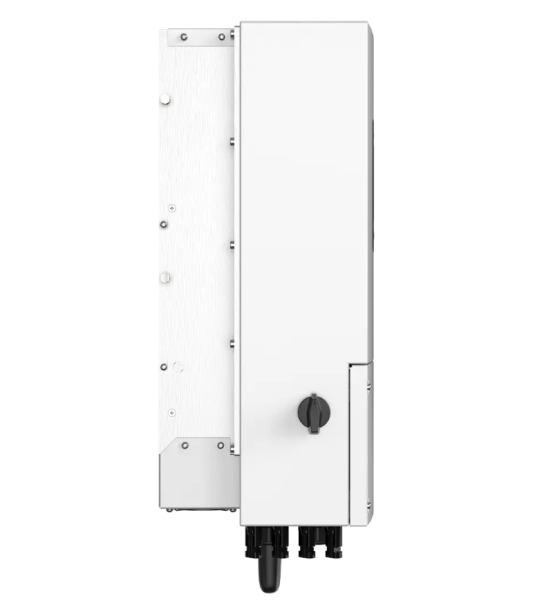

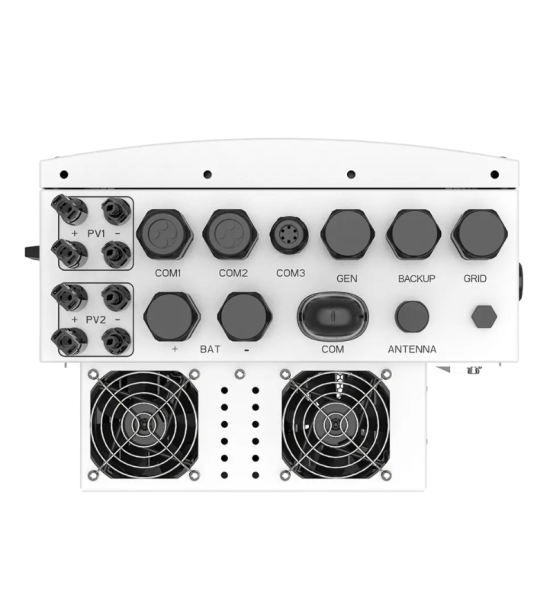

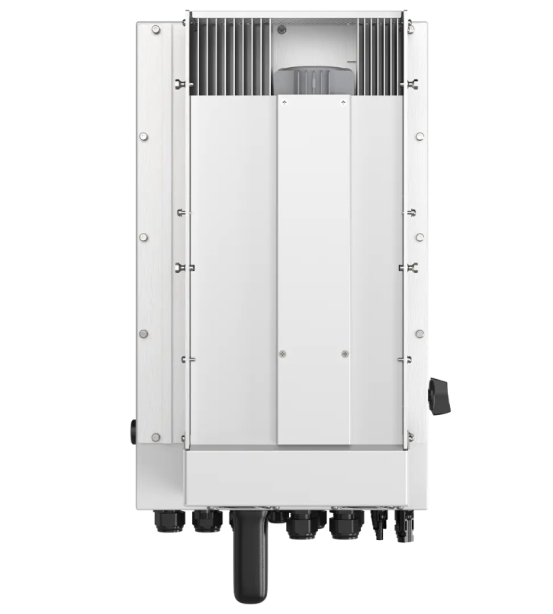

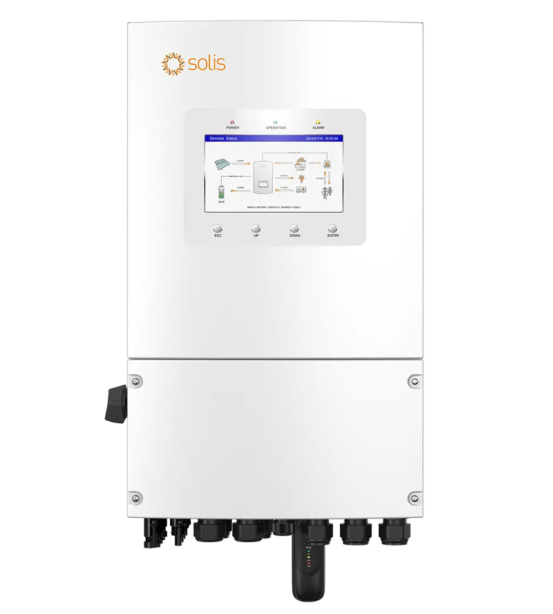

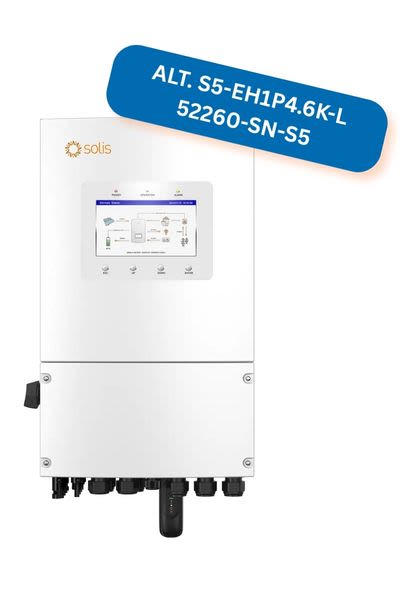

Solis S6-EH1P5K-L-PLUS Hybrid

Product code : 52253-SN

Solis S6-EH1P5K-L-PLUS Hybrid Energy Storage Inverter – Includes Dual LAN & Wi-Fi Stick

You can contact us for more information via the button “add to Wishlist'

Configure - Step 2 - Necessary Accesories

Solis RHI / RAI 3-Phase Energy Meter

G-Stor Cable Kit LG Chem ø35mm Battery-Inverter

G-Stor Cable Kit BYD-LVS Battery-Inverter

Pylontech Cable Kit SurLok Plus Plug-Plug 1.5M

Configure - Step 3 - Recommended Accesories

Dyness DL5.0 Stack Bracket

GPC MIDI-fuse Fuse Holder 2xM5

GPC Fuse 70A MIDI (48V)

GPC Fuse 100A MIDI (48V)

G-Stor Battery Bracket Drill Holes Template

GPC Modular DC Circuit Breaker 2P 125A

GPC Junction Box with perforation membrane

Pylontech Fidus Wall-Mounted Brackets

Pylontech Fidus Ground-Mounted Brackets

Solis S6-EH1P5K-L-PLUS Hybrid

Product description

Solis S6-EH1P5K-L-PLUS Hybrid

The Solis S6-EH1P(3-10)K-L-PLUS series is a modern, powerful, and reliable single-phase hybrid energy storage inverter designed to maximize the performance of your PV installation — featuring backup power, intelligent battery control, and flexibility for a wide range of residential applications.

Key features of the S6-EH1P(3-10)K-L-PLUS

🔋 Efficient energy storage
Supports up to 42 A MPPT input current and a wide range of high-power PV modules. Advanced battery management extends battery lifespan and maximizes self-consumption.

⚡ Flexible system expansion
Multiple units can be connected in parallel, allowing easy system expansion up to a total output power of 48 kW.

🔌 Seamless backup and off-grid operation
With ultra-fast UPS switching (< 10 ms) and off-grid support, the system ensures continuity during power outages and keeps critical loads running.

🚀 Robust and intelligent control
Supports PV input up to 160% of nominal DC power and handles up to 200% overload for short-term peak demands (e.g. motors, pumps).

💻 Easy monitoring – Dual LAN & Wi-Fi included
The entire S6 series comes standard with a Dual LAN & Wi-Fi stick, enabling both wired and wireless connectivity. This allows easy real-time performance monitoring via the SolisCloud platform, making installation and remote monitoring simple and reliable.

📊 User-friendly display
An integrated 7″ touchscreen provides a clear and intuitive interface for local control and system status monitoring.

Solis S6-EH1P5K-L-PLUS Hybrid

Product specifications

Max. AC power (W)

5000

Communication

RS485, CAN, Ethernet + optional: Wi-Fi, LAN, cellular

Max. PV array power at STC (Wp)

5760

Number of MPP trackers

European efficiency (%)

96,1

Brand

Solis

Factory Warranty (Year)

Reference

S6-EH1P5K-L-PLUS
